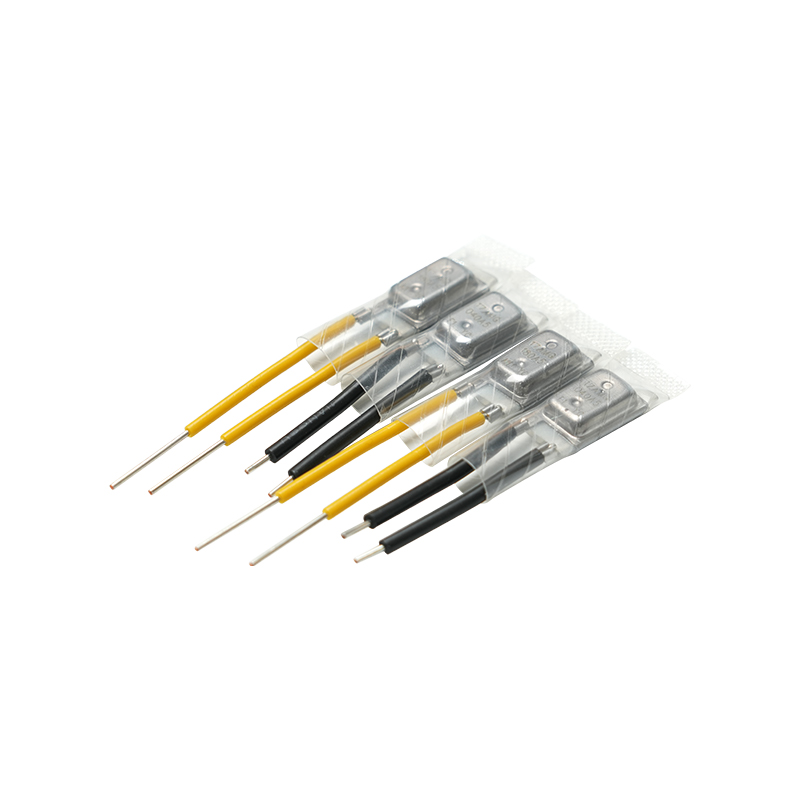

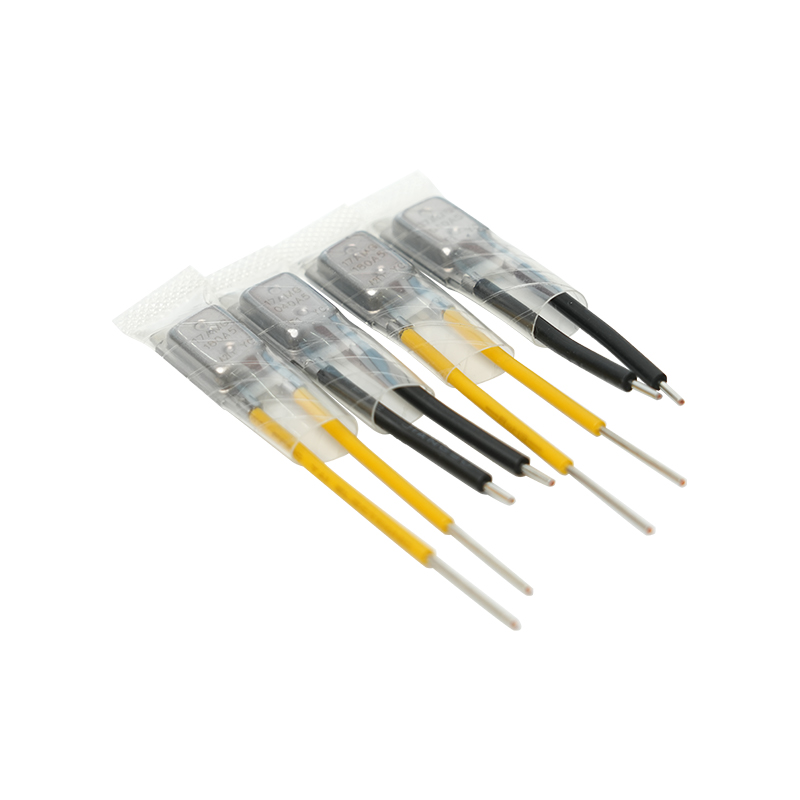

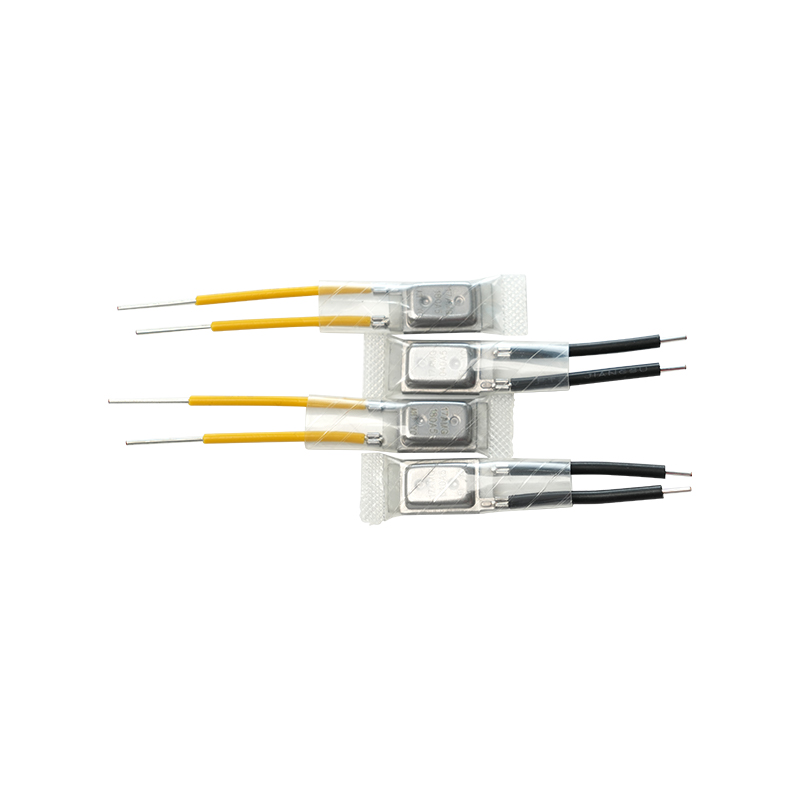

17AM Bimetal thermostat temperature switch
Key Features:
Precise Temperature Control: The bimetallic strip, a core component, responds swiftly to temperature fluctuations, accurately triggering the switch to protect devices from overheating.
Customizable Settings: Tailored to specific needs, the 17AM series offers a wide range of trip temperatures (50°C to 180°C) and trip times (2s to 12s), ensuring protection for diverse applications.
Robust Construction: Engineered for durability, the 17AM series is built to withstand harsh operating conditions, making it ideal for industrial and household use.
Easy Installation: The compact design and simple installation process minimize downtime and reduce maintenance costs.
Applications:
Motors
Transformers
Batteries
Lighting Appliances
Cleaning Machines
Water Pumps
Power Tools
Electric Heating Pads
Household Appliances
How it Works:
Temperature Sensing: The bimetallic strip continuously monitors the temperature of the protected device.
Overcurrent Detection: The 17AM series also detects excessive current flow, which can lead to overheating.
Protection Activation: When the temperature or current exceeds predefined thresholds, the bimetallic strip bends, triggering the switch to open and interrupt the power supply.
Automatic Reset: Once the temperature or current returns to safe levels, the bimetallic strip resets, allowing the device to resume operation.
| Tripping temperature range: | 50℃ ~ 180℃ |
| Temperature tolerance: | ± 5 ℃; ± 8 ℃ |
| Tripping range for controlled overload current: | 4-60A |
| Duration: | 2s - 12s (customized) |
As China 17AM Bimetal thermostat temperature switch Suppliers and Custom 17AM Bimetal thermostat temperature switch Company,The company has a strong ability to develop, produce, and test. We have invested a lot in researching and developing new products by introducing abroad new and advanced technology, such as the automatic production line from Japan. The management system is strictly carried out according to the ISO9001. Our vision is to pursue excellence, develop the Yitong brand, obey integrity, and meet the requests of the customers. Intensify the quality monitoring and management, and proceed with normalized and standardization management. Construct the company culture and strengthen the core competitiveness.
-
