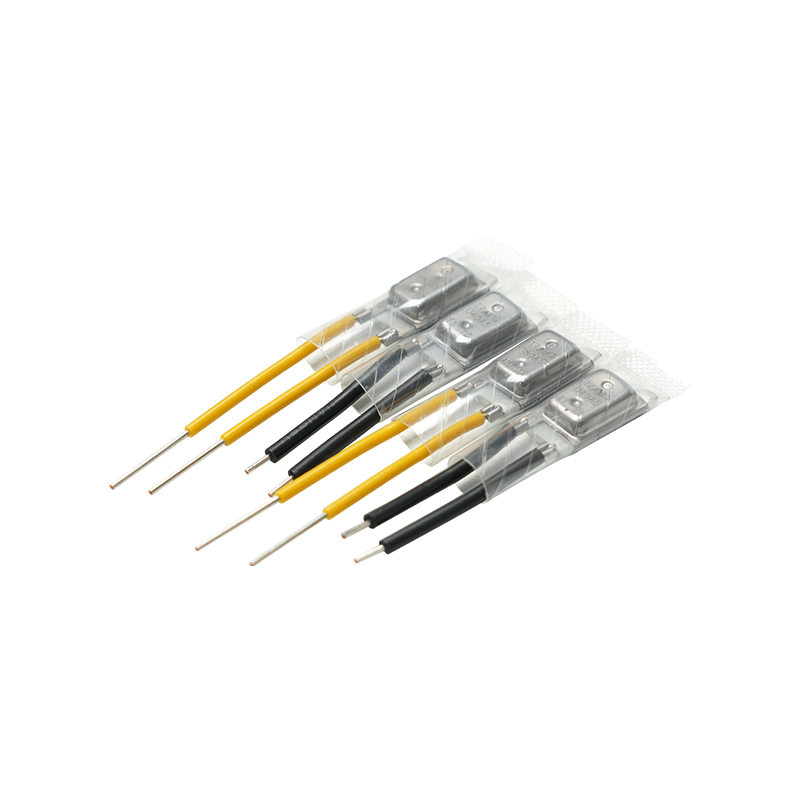

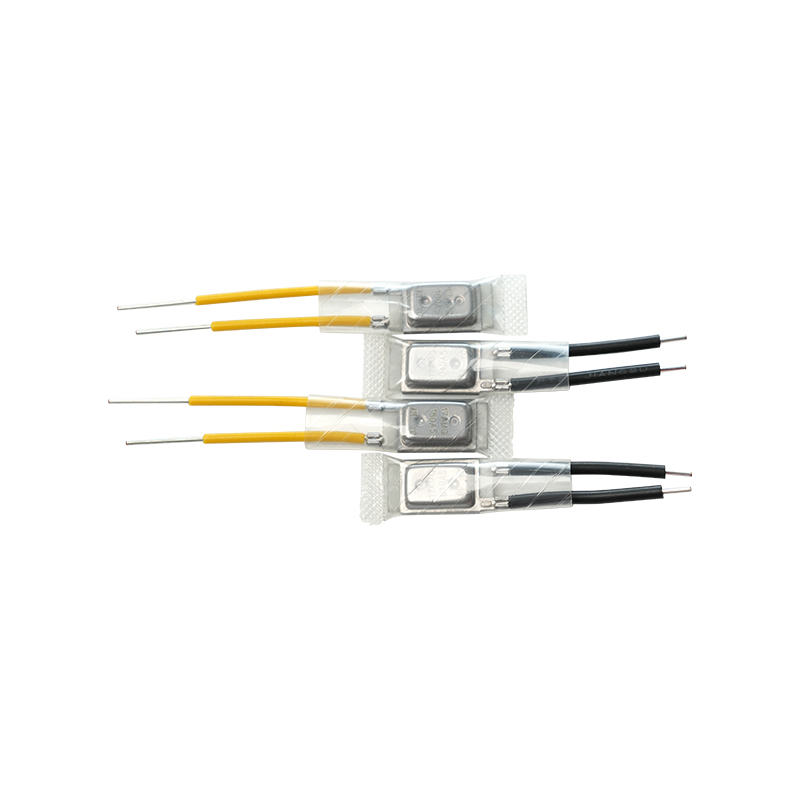

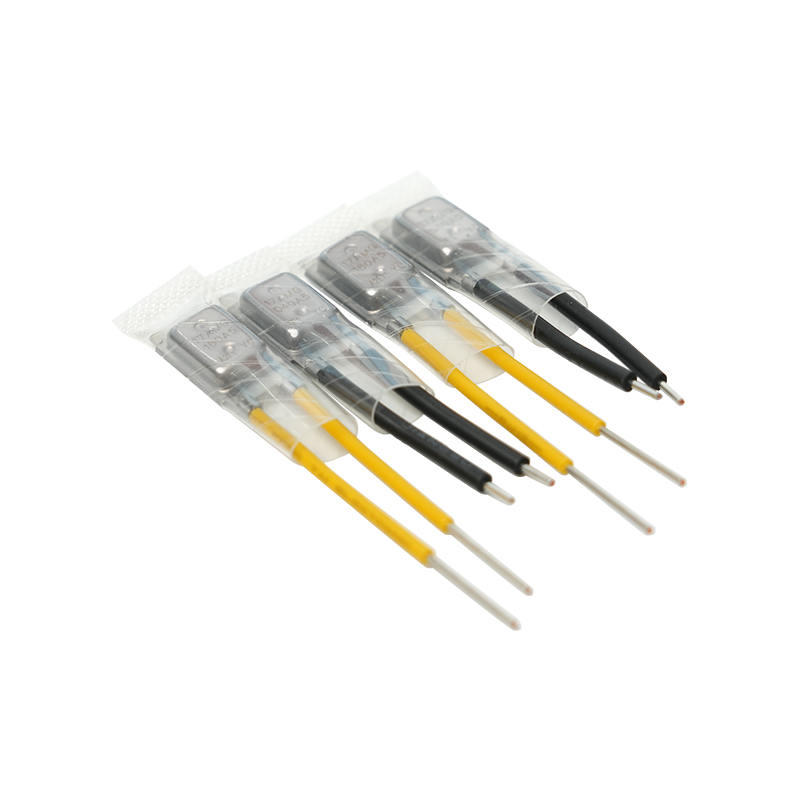

17AM motor thermal protector
Key Features:
Small Size: Compact and easy to integrate into various designs.
Reliable Protection: Effectively prevents damage from overheating.
Temperature Sensitivity: Reacts quickly to temperature changes.
Robust Construction: Designed to withstand external forces.
Customization: Offers flexibility in terms of temperature ratings, voltage/current ratings, and wire specifications.
We are a manufacturer of 17AM thermal motor protectors. With our 17AM thermal protectors, you can significantly enhance the safety, reliability, and longevity of your electrical equipment.
|
Parameter |
Attribute |
Value(s) |
Units |
Notes |
|
Trip Temperature |
Range |
50°C - 180°C |
°C |
Varies significantly between models |
|
Temperature Tolerance |
Accuracy |
±2°C, ±3°C, ±5°C, ±8°C |
°C |
Depends on specific model and application |
|
Voltage Rating |
AC |
125V, 230V |
VAC |
May have other options depending on the model |
|
Current Rating |
AC |
8A, 16A, etc. |
Amps |
Varies greatly with voltage and application |
|
Contact Configuration |
Normally |
Open (NO), Closed (NC) |
- |
Determines circuit behavior at rest |
|
Reset Type |
- |
Manual, Automatic |
- |
Manual requires user intervention; Automatic resets after cooling |
|
Dimensions |
Length, Width, Height |
Varies greatly |
mm |
Depends on specific model and package type |
|
Mounting |
- |
Through-hole, Surface Mount, Others |
- |
Depends on the design and application |
|
Life Cycles |
- |
High |
Cycles |
Typically rated for a large number of on/off cycles |
As China 17AM Motor Thermal Protectors Manufacturers and Custom 7AM035A5 Factory,The company has a strong ability to develop, produce, and test. We have invested a lot in researching and developing new products by introducing abroad new and advanced technology, such as the automatic production line from Japan. The management system is strictly carried out according to the ISO9001. Our vision is to pursue excellence, develop the Yitong brand, obey integrity, and meet the requests of the customers. Intensify the quality monitoring and management, and proceed with normalized and standardization management. Construct the company culture and strengthen the core competitiveness.
-
