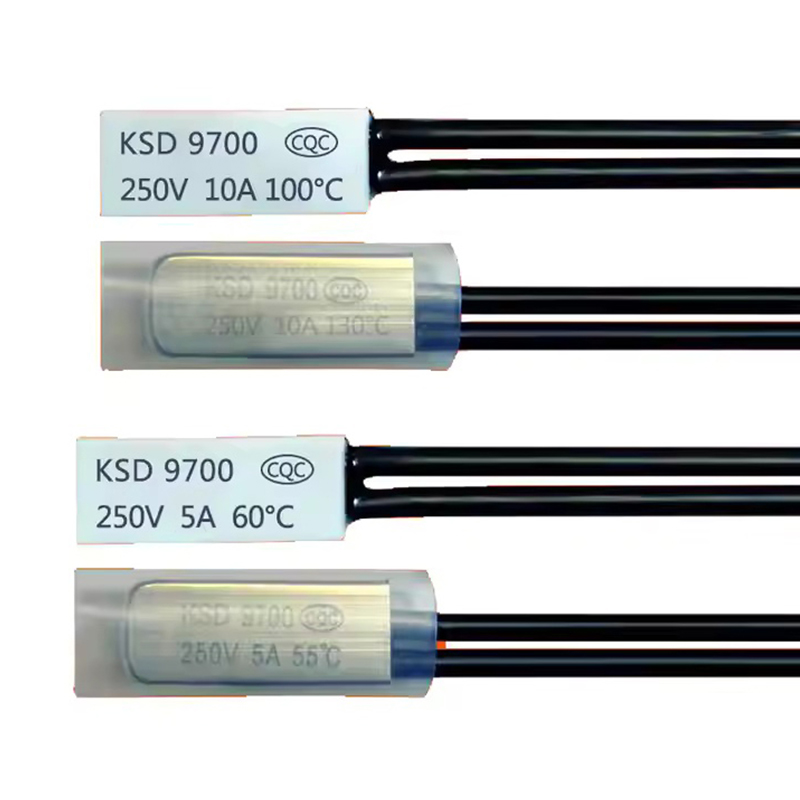

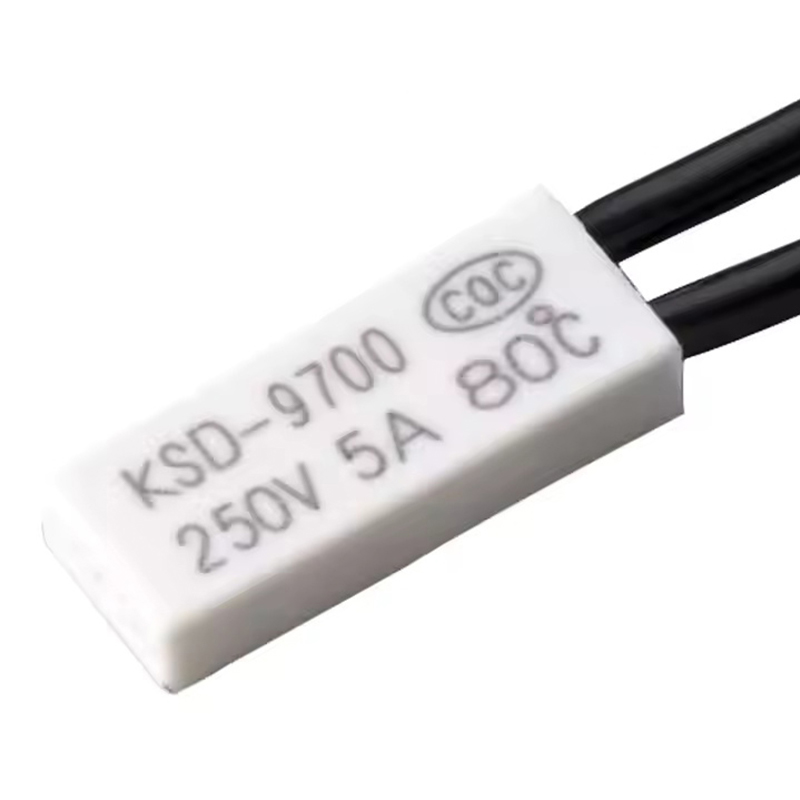

KSD9700 bimetal thermostat temperature switch for ballast
Key Features:
Compact Design: Small size for easy integration into various ballast designs.
Fast Response: Quick activation to protect against rapid temperature increases.
Reliable Performance: Consistent and dependable operation.
Wide Temperature Range: Available in various temperature ratings to suit different ballast types and operating conditions.
Easy Installation: Simple to install and wire.
How it Works:
Bimetallic Strip: The heart of the KSD9700 is a bimetallic strip, composed of two different metals bonded together. These metals expand and contract at different rates when exposed to temperature changes.
Temperature Sensing: As the temperature of the ballast increases, the bimetallic strip bends due to the differential expansion.
Activation: When the temperature reaches a predetermined threshold, the bending of the bimetallic strip triggers a mechanical switch.
Circuit Interruption: The activated switch interrupts the power supply to the ballast, preventing further heating and potential damage.
Reset: Once the temperature cools down, the bimetallic strip returns to its original position, allowing the circuit to resume operation.
Technical Specifications
Voltage Ratings:
AC125V/18A
AC230V/13A
DC24V/18A
Temperature Range: 60°C to 160°C
Temperature Tolerance: ±2°C, ±3°C, ±5°C, ±8°C
Mounting Options: Various mounting options available, including PCB mount and terminal block.
Applications:
Fluorescent Ballast: Protects against overheating caused by factors like aging components, excessive current, or poor ventilation.
HID Ballast: Safeguards against thermal overload, ensuring the longevity of the ballast and lamp.
LED Ballast: Prevents overheating issues that can reduce the lifespan and efficiency of LED lighting systems.
More Application:
Household appliances (e.g., toasters, irons, hair dryers)
Industrial equipment (e.g., motors, compressors)
Automotive systems (e.g., engine cooling systems)
Lighting fixtures
Power tools
Battery chargers
Medical devices
