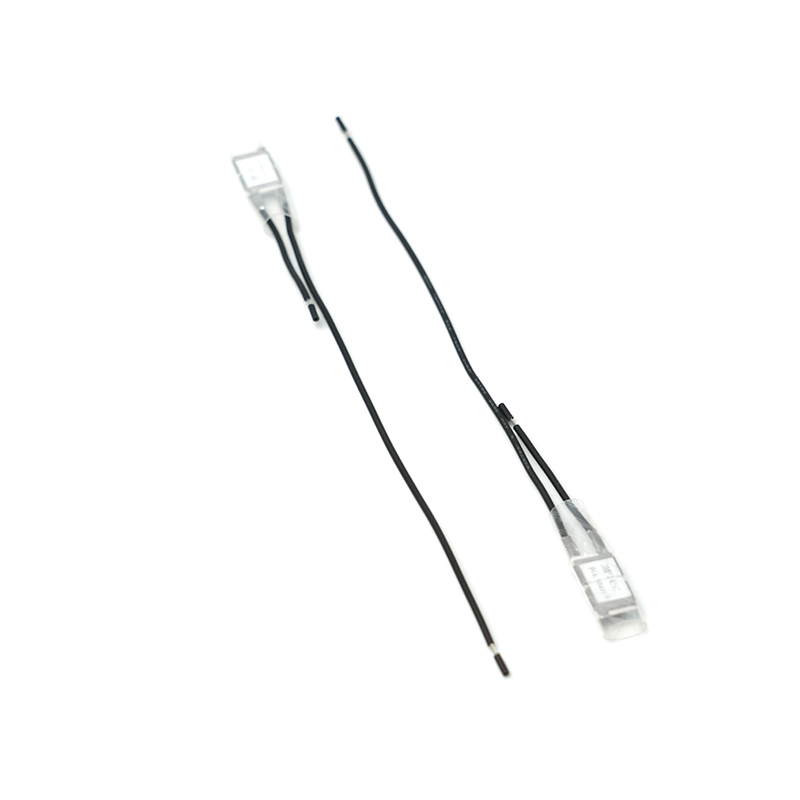

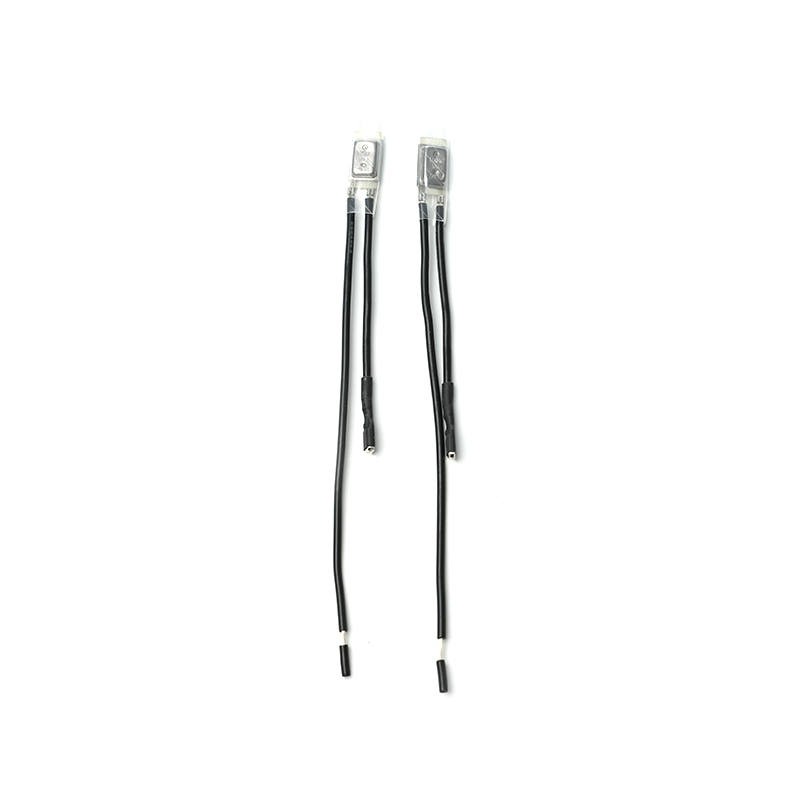

17AMG thinner type thermal protector, klixon thermal protector
Key Features:
Compact Design: The slim profile allows for easy integration into various applications.
Reliable Performance: Proven track record of protecting devices from thermal damage.
Quick Response: Rapidly activates to prevent overheating.
Accurate Tripping: Precisely calibrated to trip at the specified temperature.
Durable Construction: Built to withstand harsh environments.
Voltage:
Blocking current: 4-60A
Parameter:
Tripping temperature range： 50℃～180℃
Temperature tolerance： ±5℃; ±8℃
Tripping time: 2s – 12s (customized)
Applications
17AMG thinner type thermal protectors are widely used in a variety of applications, including:
Motors: Shaded pole motors, permanent split capacitor motors, etc.
Lighting Ballasts: Fluorescent and HID ballasts
Transformers
Recessed Lighting Fixtures
Battery Packs
Vacuum Cleaners
Automotive Accessory Motors and Solenoids
PC Boards
How Does It Work?
Bimetallic Strip: At the heart of the protector is a bimetallic strip, composed of two metals with different thermal expansion coefficients.
Temperature Rise: When the device's temperature exceeds a predetermined threshold, the bimetallic strip bends due to the difference in thermal expansion.
Circuit Interruption: This bending action triggers a mechanism that interrupts the electrical circuit, preventing further current flow and halting the device's operation.
Automatic Reset: Once the temperature drops below a certain point, the bimetallic strip returns to its original position, allowing the circuit to resume operation.
Dimension：

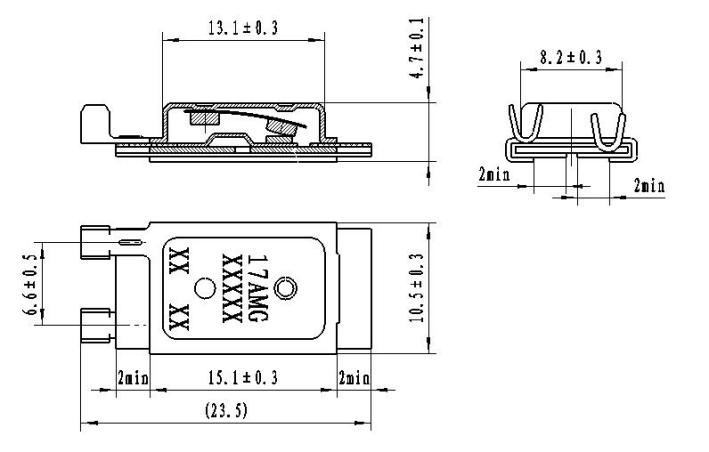

Flat wire type

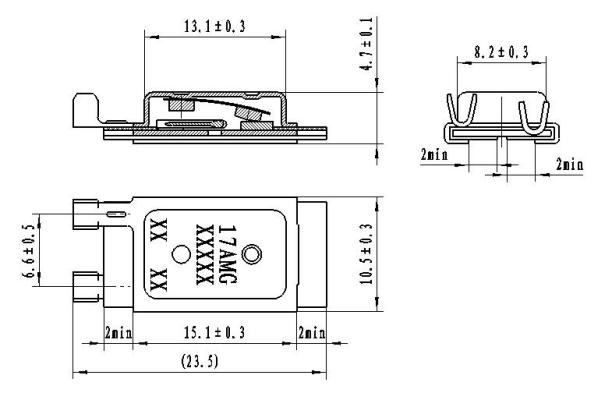

Round wire type
